Vertical Multi-lane Back Sealing Stick Pack Powder Packing Machine

Home > Product Center >Vertical...
Detailed Information

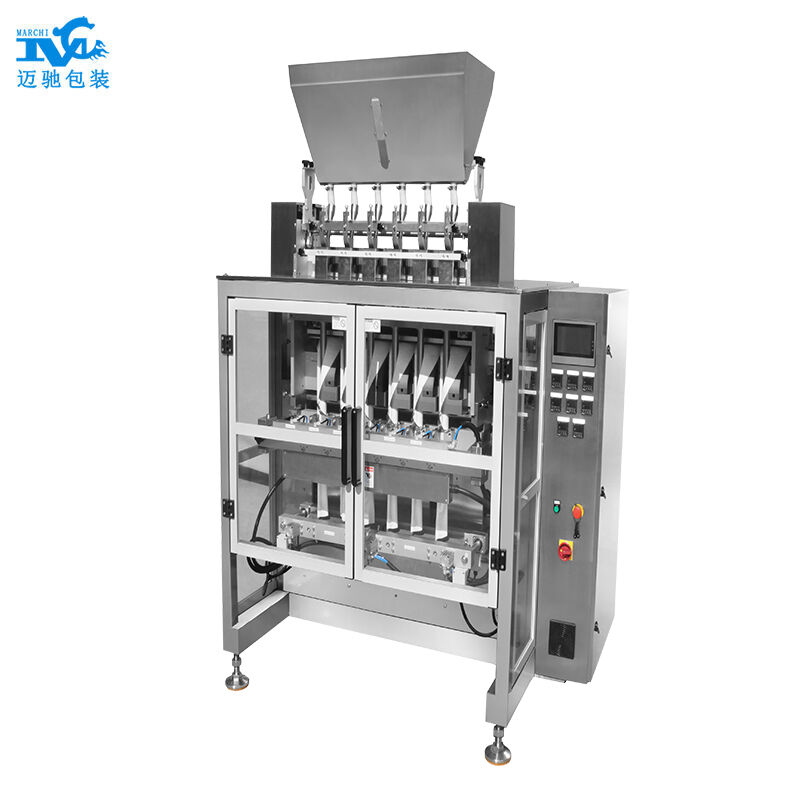

  • Vertical Multi-lane Back Sealing Stick Pack Powder Packing Machine

    Equipment features:

    1.The machine can automatically complete multi-lane products measuring, feeding, filling and stick forming(date code printed), stick sealing and cutting.
    2. Adopt advanced technology, humanized design, Japanese "Panasonic" PLC + 5.7" touch screen control system, high degree of automation.
    3. Automatic alarming, stopping and self-diagnosing when failure, can be viewed directly from the screen. It is safe, easy-using, quick maintain, automatically display the number of sticks, and can easily count the workload of the machine.
    4. Using the working principle of heat sealing, the motor controls film-pulling and the speed of stick -pulling is fast and stable.
    5.With high sensitivity photoelectric switch, the printing cursor can be automatically tracked and positioned, and the complete trademark pattern can be obtained when using the packaging material which has color mark.
    ModelMCDL190TMCDL320TMCDL480TMCDL800T
    Stick length(mm)70~20070~20070~20070~200
    Stick width(mm)16~4216~3016~5516~90
    Film width(mm)Max190Max320Max480Max800
    Lanes24-64-86-12
    Capacity(cutting/min)35~5035~45
